Product description

For A Better Inspection Scope

Model:FG20 / FG25

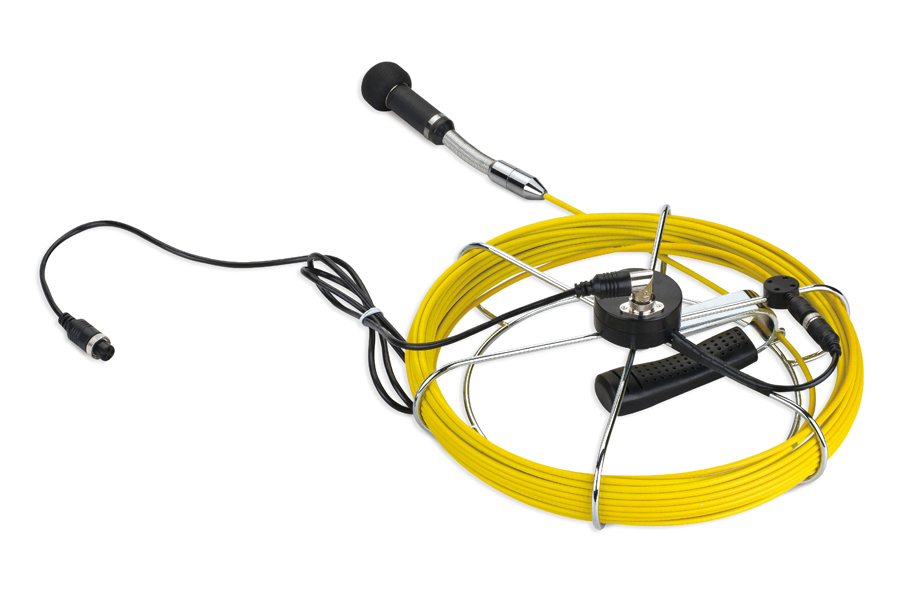

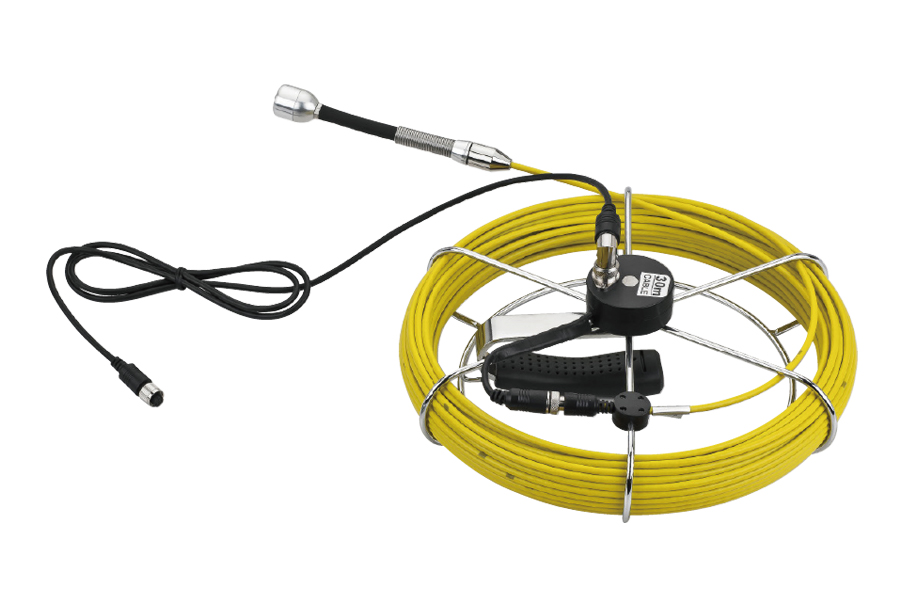

Fiber Glass Probe

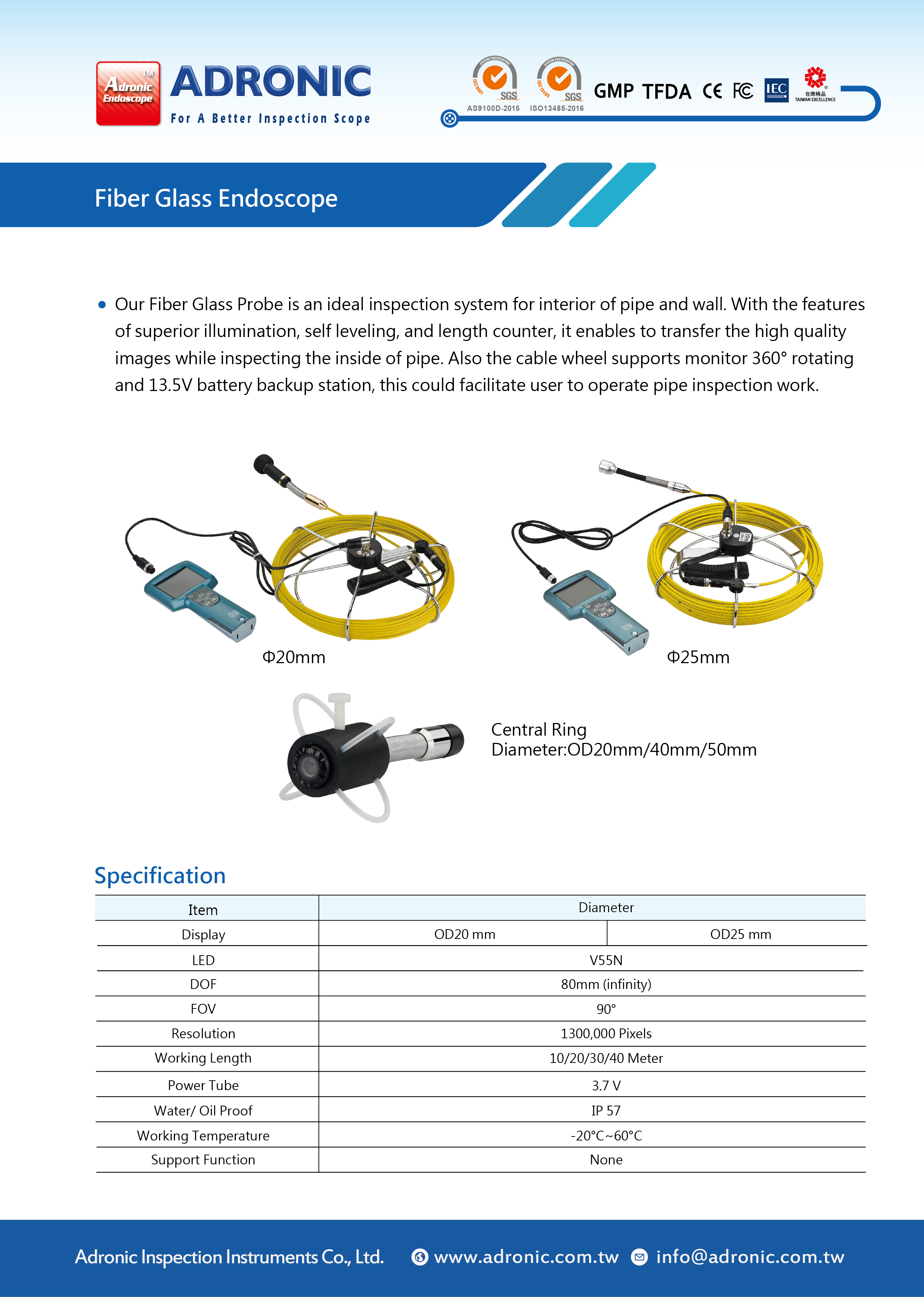

Our Fiber Glass Probe is an ideal inspection system for interior of pipe and wall. With the features of superior illumination, self leveling, and length counter, it enables to transfer the high quality images while inspecting the inside of pipe. Also the cable wheel supports monitor 360° rotating and 13.5V battery backup station, this could facilitate user to operate pipe inspection work.


Sapphire Lens and  12~24 Strong LED Light
Our fiber glass probe has a unique design for sapphire lens, it enables to resist scratching while the camera being pushed into rough pipes. Furthermore, the fiber glass probe is equipped with 12~24 strong LED light, with the powerful illumination, it allows user to see the inspecting target inside the dark pipe.



Self Leveling
The lens for our OD40mm/50mm fiber glass probe is featured with self leveling. The self leveling design enables to maintain the live image always right side up. It facilitates users to know the correct direction and clearly see the inspection area.

Length Counter and Built-in Transmitter Option
Our OD40mm/50mm fiber glass probe is equiped with length counter, this allows user to know how much cable has been iserted into the inspected area. The probe contains unit switchable for metric or imperial and reset function, users enable to select their preferred unit or re-count the cable length by just pressing the green button. Moreover, our OD20mm/40mm/50mm fiber glass probe also supports built-in transmitter option, it allows user to locate the position of the camera with locator to track the damaged area.

Item

Diameter

Display

OD20 mm

OD25 mm

LED

V55N

DOF

80mm (infinity)

FOV

90°

Resolution

1300,000 Pixels

Working Length

10/20/30/40 Meter

Power Tube

3.7 V

Water/ Oil Proof

IP 57

Working Temperature

-20°C~60°C

Support Function

None

Fiber Glass Probe

Optional Accessory

Specification

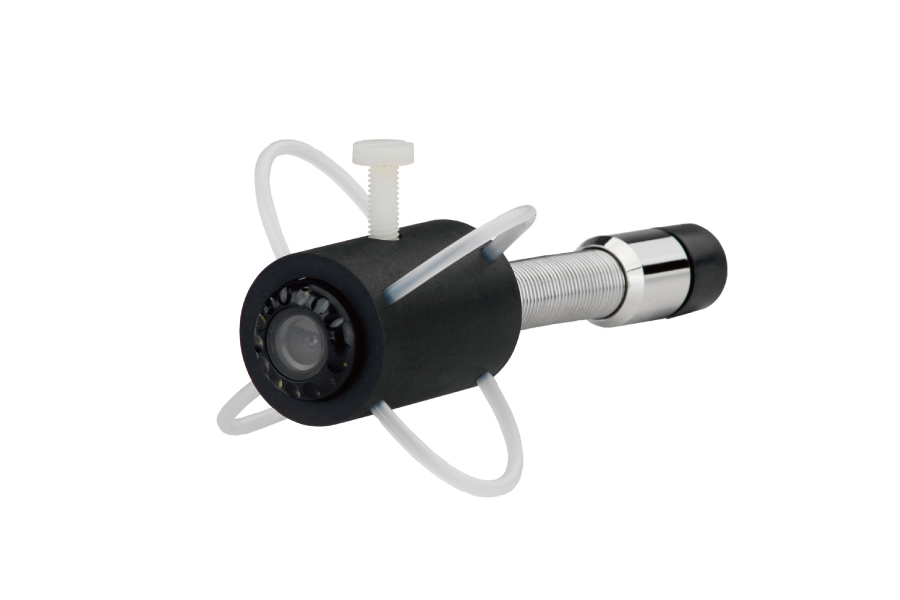

Central Ring

Diameter:OD20mm/40mm/50mm
