    • Product description

    For A Better Inspection Scope

    ◆Model 800.2822.1MF
    ◆Model 800.3024.1MF
    ◆Model 800.3928.1MF
    ◆Model 800.4328.1MF

    Scope of application
    Special design for inspecting U/O type pipe purpose.
    Provides wide range of probe to meet multi-purpose inspecting requirement.


    Unique Design Special Way for Storage
    1. Special design for inspecting U/O type pipe purpose.
    2. Angle locker could fix the bending angle in any degree.
    3. Unique design for release steel wire prevents neck damage for storage.

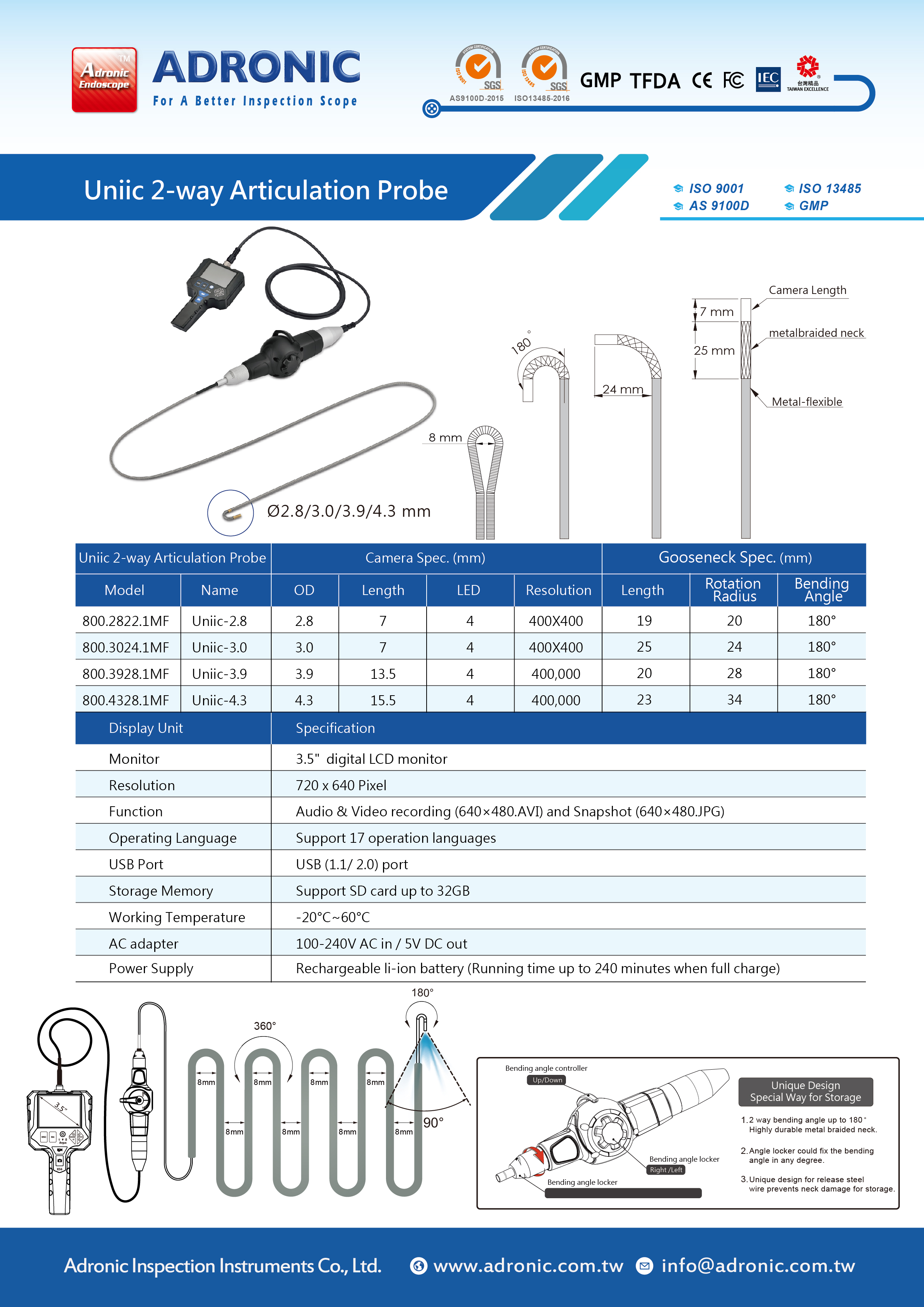

    Uniic Articulation Probe Camera Spec. (mm) Gooseneck Spec. (mm)

    NO

    Model

    Name

    OD

    Length

    LED

    Resolution

    Length

    Rotation Radius

    Bending Angle

    1

    800.2822.1MF

    Uniic-2.8

    2.8

    7

    4

    400x400

    19

    20

    180°

    2

    800.3024.1MF

    Uniic-3.0

    3.0

    7

    4

    400x400

    25

    24

    180°

    3

    800.3928.1MF

    Uniic-3.9

    3.9

    13.5

    4

    400x400

    20

    28

    180°

    4

    800.4328.1MF

    Uniic-4.3

    4.3

    13.5

    4

    400x400

    23

    34

    180°



    Display Unit

    Specification

    Monitor

    3.5" digital LCD monitor

    Resolution

    720x640 Pixel

    Function

    Support Audio recording (MPEG4),Video recording(AVI) recording and Snapshot(JPEG)

    Operation Language

    Support 17 operation languages

    USB Port

     USB port (1.1/2.0)

    Storage Devices

    Support SD card up to 32GB

    Working Temperature

    -20°C~60°C

    AC adapter

    100-240V AC in/ 5V DC out

    Battery

    Rechargeable Li-ion battery(Running time up to 240 minutes when full charge)

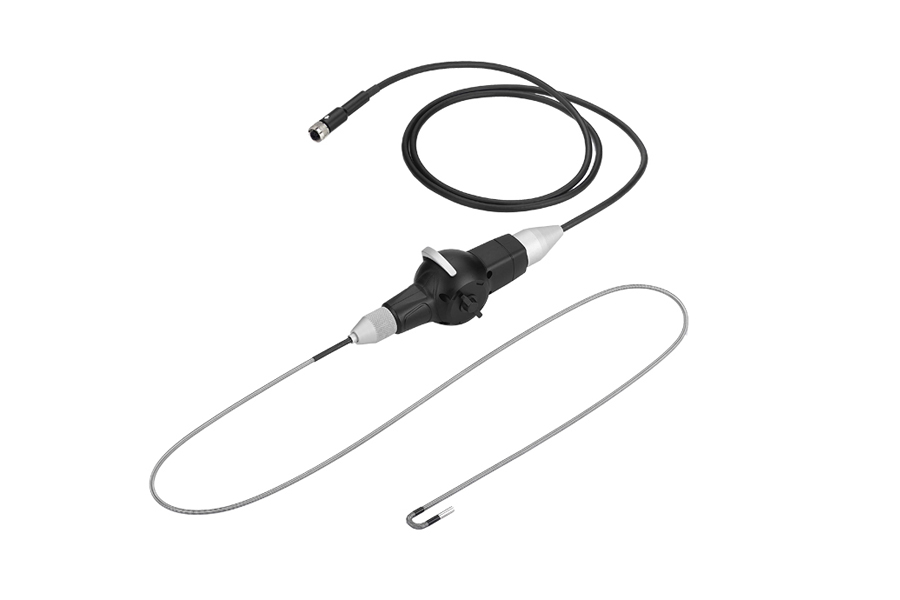

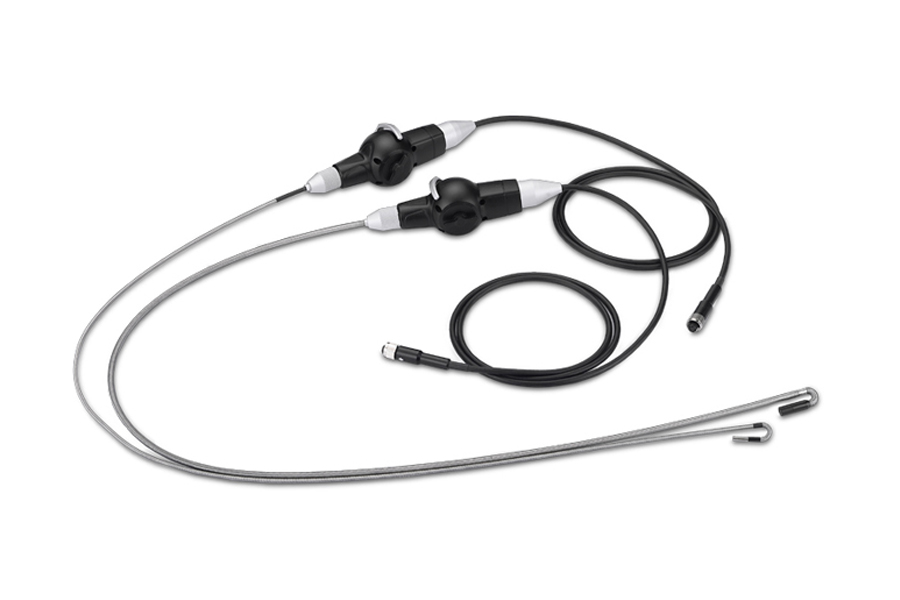

    Uniic Articulation Probe
