    • Product description

    For A Better Inspection Scope

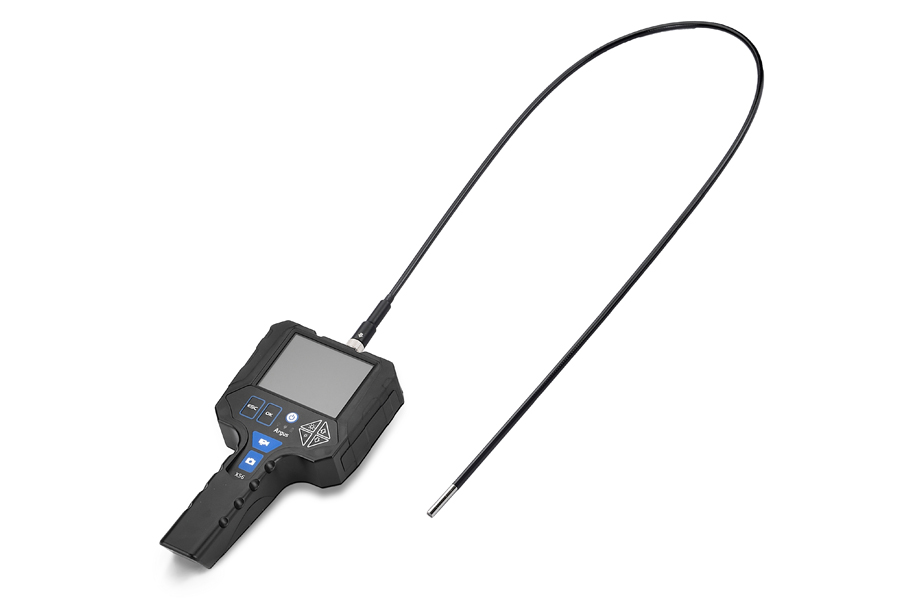

    Industrial Endoscope

    Model: AS280、AS390、 AS550、AS800
    ◎  Probe Material: Flexible / Metal-Flexible / Metal-Braided / Semi-rigid / Rigid
    ◎  Outer Diameter : OD2.8/OD3.9/OD5.5/OD8.0mm
    ◎  Mirror, Contrast, Brightness adjustments
    ◎  Easy to carry and use for 3.5”Video Scope

    Specifications Model OD DOF Resolution FOV
    Industrial Endoscope AS 280 2.8mm 10~50mm 160,000 90°
    AS 390 3.9mm 10~50mm 400,000 90°
    AS 550 5.5mm 20~70mm 450,000 90°
    AS 800 8.0mm 20~70mm 450,000 90°
    Probe Material Flexible / Metal-Flexible / Metal-Braided / Semi-rigid / Rigid
    Working Length Rigid Max : 70cm
    Focus/White Balance Auto
    Monitor 3.5"(640*480  pixels) Handheld push-button operation screen
    AC adapter 100~240V
    Power Supply Rechargeable lithium battery 5000mAh; Operating time : 4 hours
    Signal Output USB、AV
    Working Temperature -20°~60°
    Anti-drop Anti-drop design
    Design Dustproof and waterproof
    Storage Memory 16GB SD Card
    Image 640 x 480.JPEG
    Video 640 x 480.AVI
    Image Adjustments Mirror, Contrast, Brightness
    Language Chinese, English, Japanese, German, French, Spanish, Russian, etc.

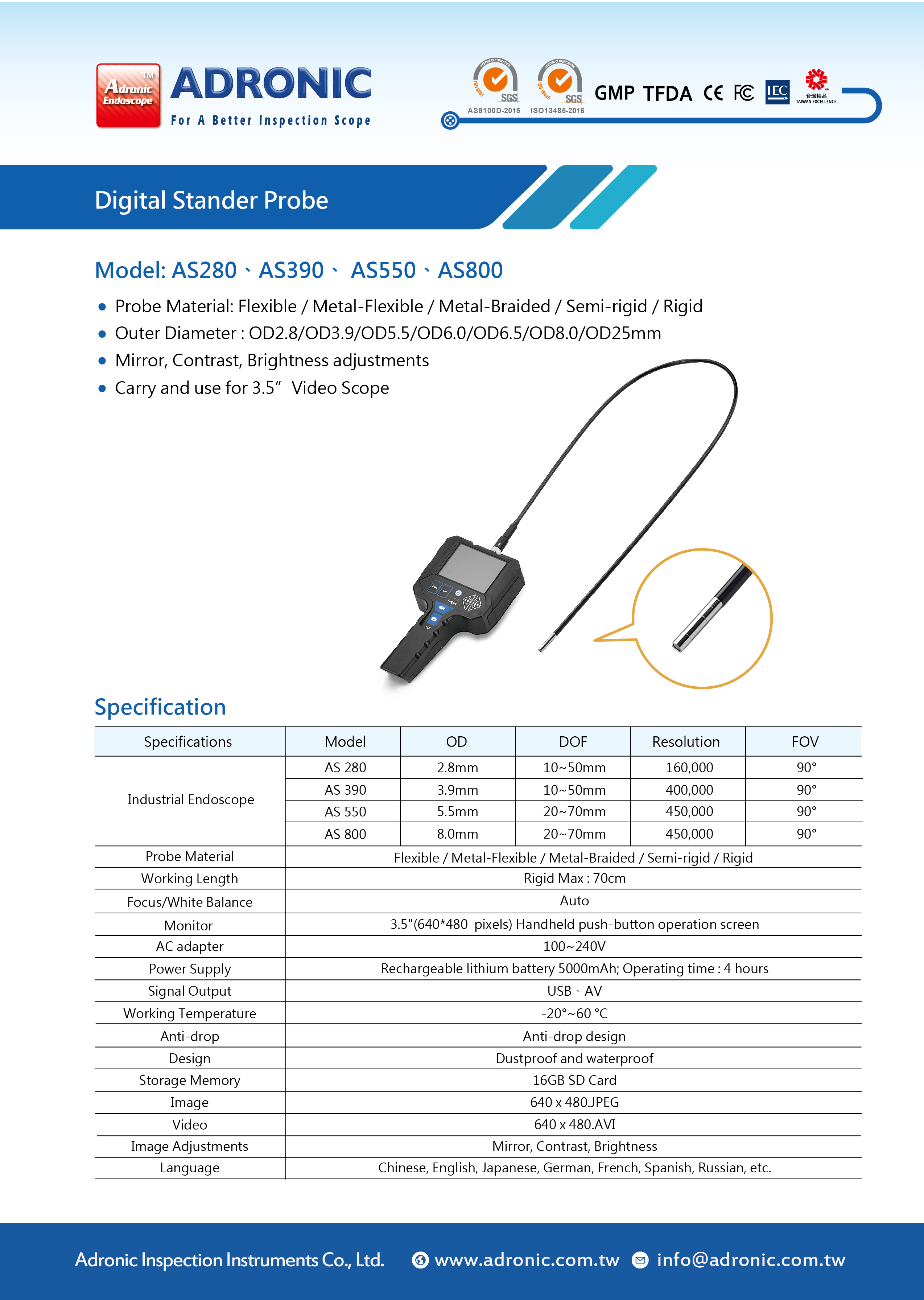

    Digital Stander Probe (AS-Series)
