◆Model 39F.4A (Flexible)
◆Model 39SR.4A (Semi Rigid)
◆Model 39MF.4A (Metal Braided)
◆Model 39MB.4A (Metal Flexible)

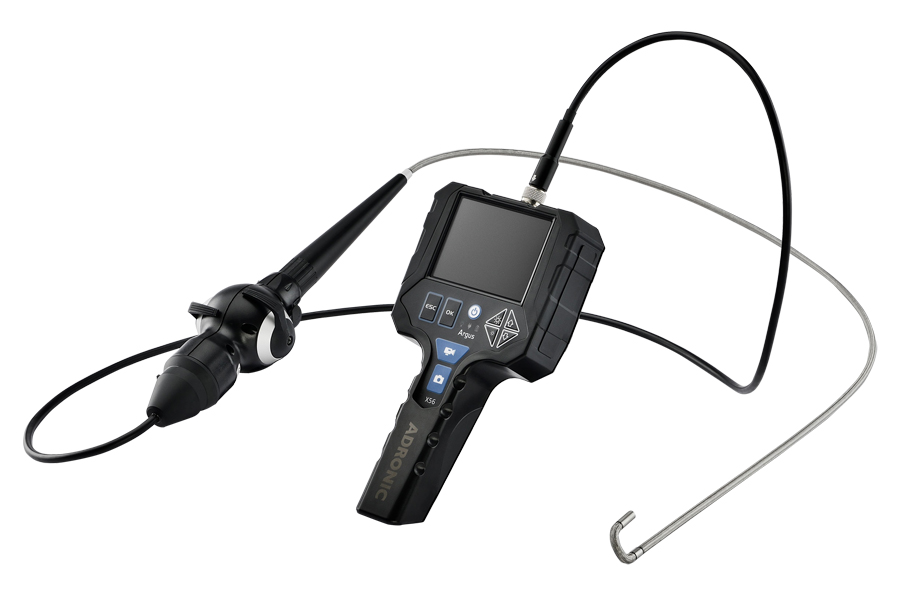

Analog type can be matched with X56 Display Unit

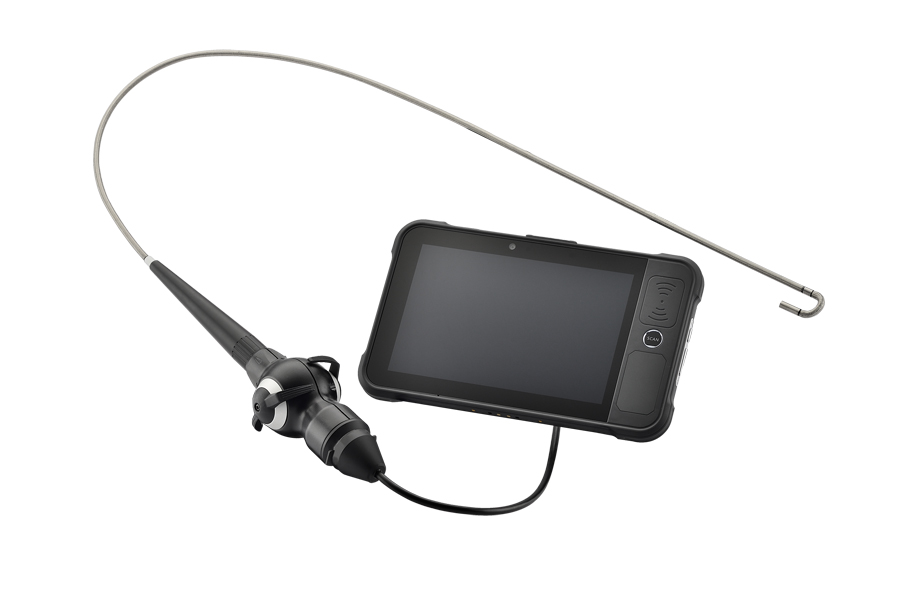

Digital can be used with tablet

Scope of application: Aviation Inspection

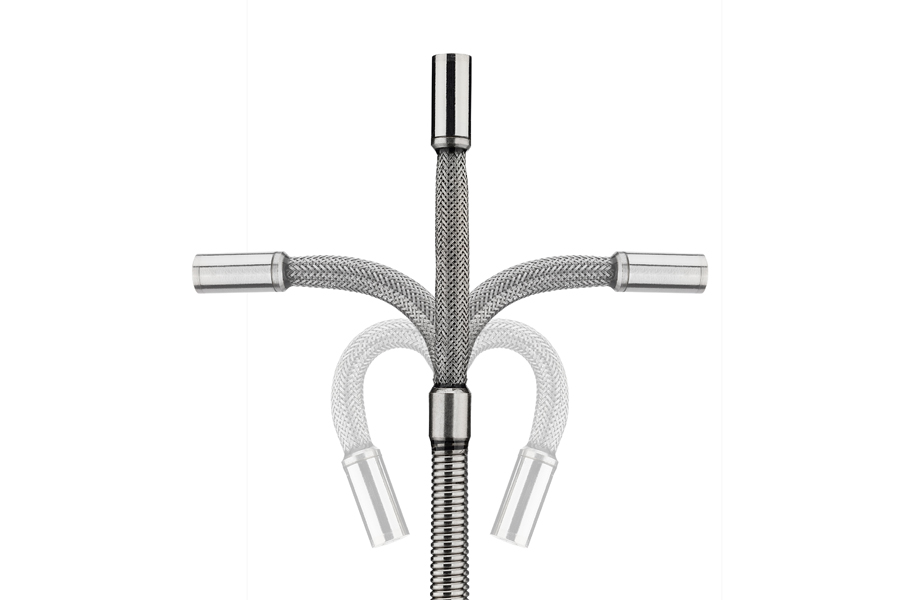

◎ Up and Down up to 270 degree
◎ Right and Left up to 270 degree
◎ Super Brightness 7LED (180 Lumens)
◎ 400,000 Pixels resolution
◎ Can be used for 3.5”Video Scope



Unique Design Special Way for Storage
1. Special design for inspecting U/O type pipe purpose.

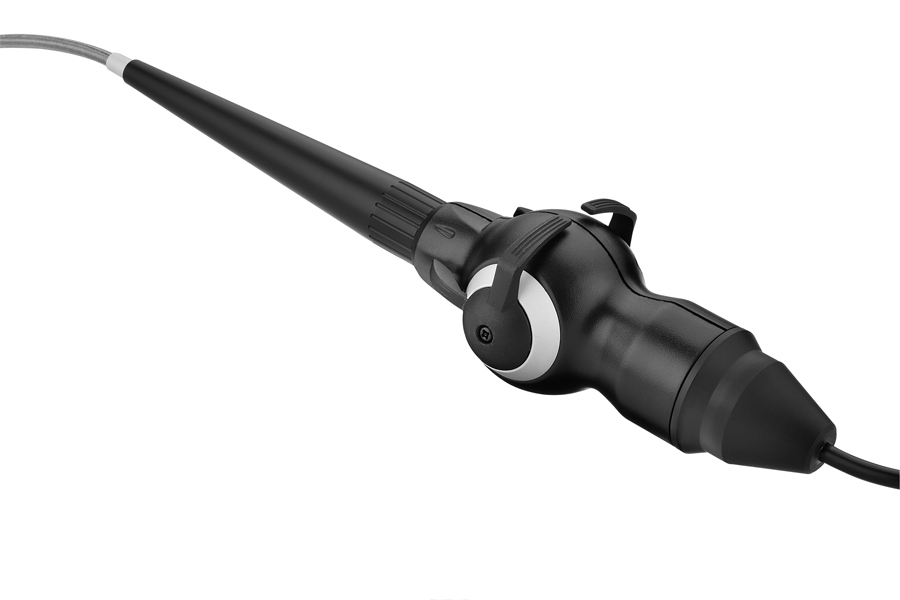

2. Angle locker could fix the bending angle in any degree.
3. Unique design for release steel wire prevents neck damage for storage.

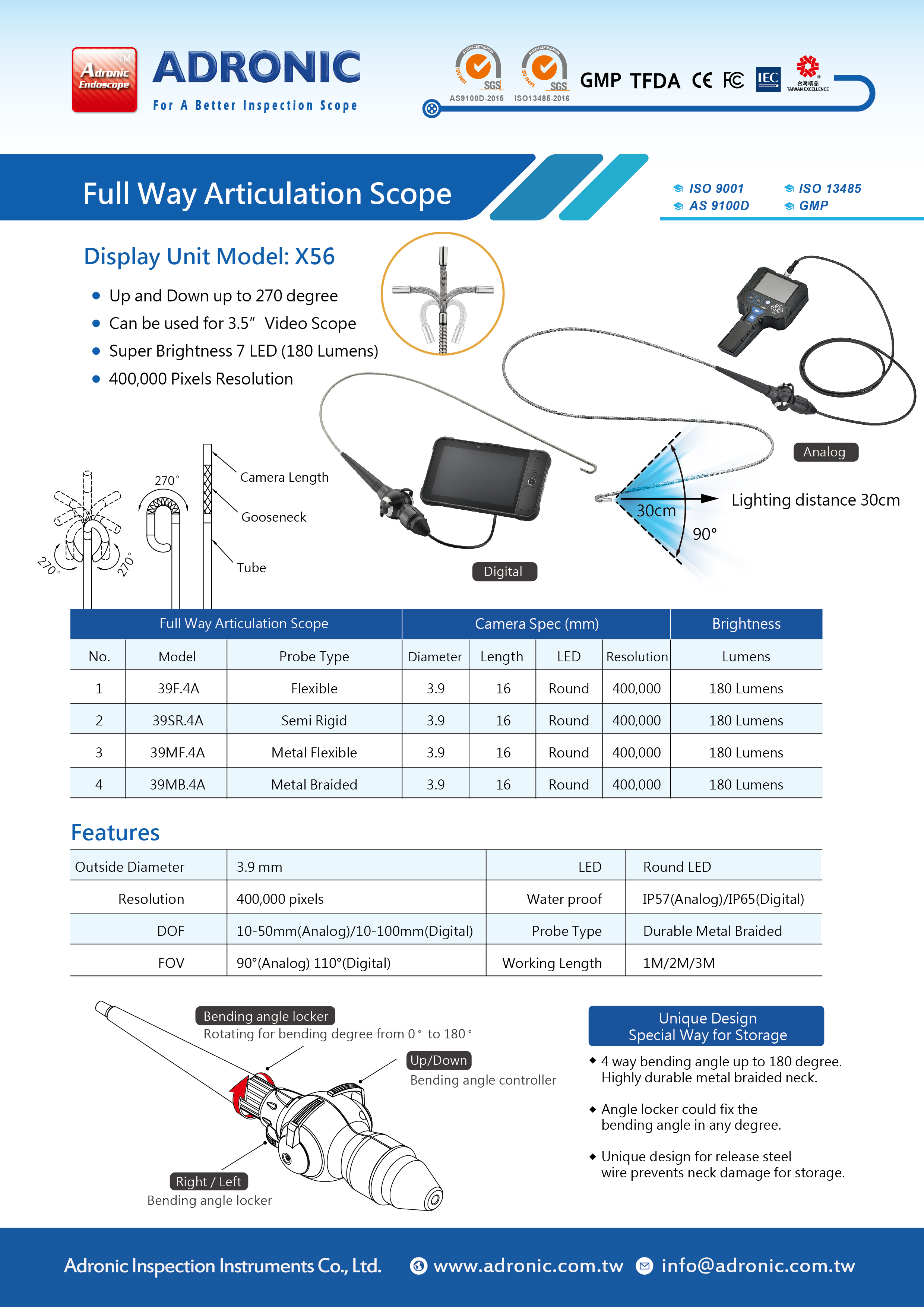

Full Way Articulation Scope			Camera Spec (mm)				Brightness
No.	Model	Probe Type	Diameter	Length	LED	Resolution	Lumens
1	39F.4A	Flexible	3.9	16	Round	400,000	180
2	39SR.4A	Semi Rigid	3.9	16	Round	400,000	180
3	39MF.4A	Metal Flexible	3.9	16	Round	400,000	180
4	39MB.4A	Metal Braided	3.9	16	Round	400,000	180



Features
Outside Diameter	3.9mm	LED	Round
Resolution	400,000 pixels	Water proof	IP57(Analog)/IP65(Digital)
DOF	10-50mm(Analog)/10-100mm(Digital)	Probe Type	Durable Metal Braided
FOV	90°(Analog) 110°(Digital)	Working Length	1M/2M/3M
