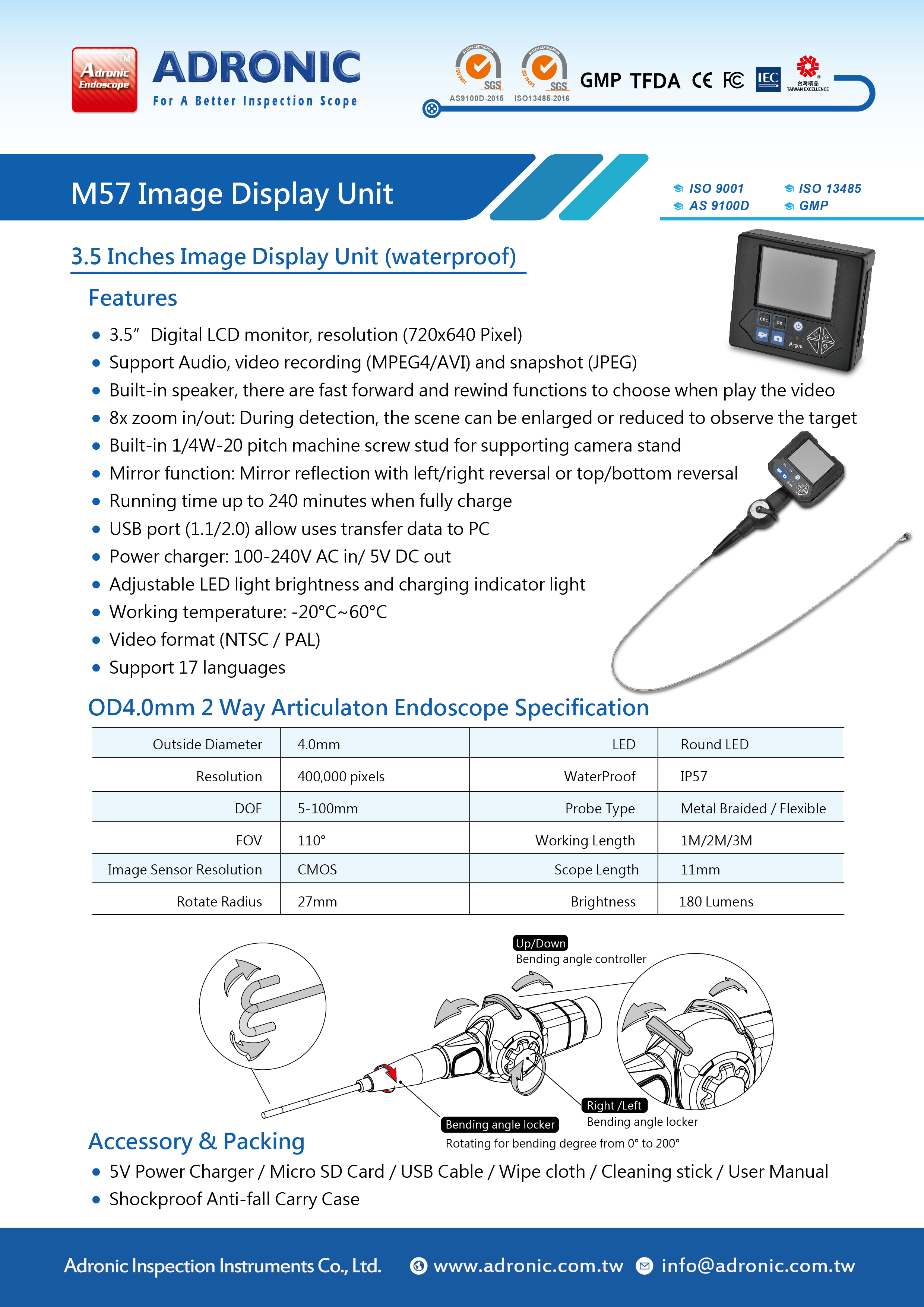

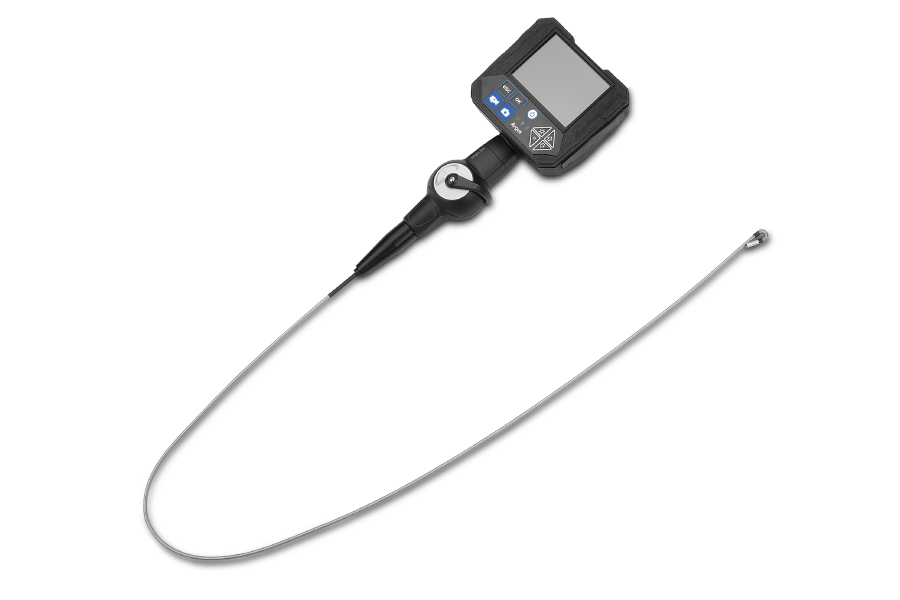

Model:M57 Display Unit

Scope of application
M57 endoscope system is mainly used for inspection, repairing and maintenance. Within 3.5”digital LCD monitor, this unit could connect The screen is clear and stable, also could manually adjust the image size and illumination. M57 enable to support Snapshot, Audio and Video recording to enhance the detection performance.

Benefit
◎  3.5”digital LCD display
◎  Portable and removable
◎  Efficiency
◎  Economic

Feature
◎  3.5”Digital Full HQ 720x 640 LCD display
◎  Snapshot (JPEG)
◎  Video recording (MPEG4)
◎  Voice recording (AVI)
◎  Built-in Speaker
◎  Fast Forward and Fast Rewind when replay the video
◎  8x zoom in/out
◎  Rechargeable Li-ion battery
◎  Running time up to 240 minutes when battery truly charged
◎  Rubber protection back cover
◎  Build-in 1/4”-20 pitch machine screw stud for supporting camera stand
◎  Reflected Mirror lens support.
◎  TV output (PAL/NTSC)
◎  17 operation languages, include Russia
◎  Illumination LED light adjustable
◎  USB port (1.1/2.0) allows user transfer data to PC
◎  Support SD card up to 32GB
◎  Power Charger: 100~240V AC in/ 5V DC out
◎  Working temperature: -20°C~60°C

Application
ADRONIC M57 Application
OD4.0mm 2 Way Articulaton Endoscope Specification



ADRONIC M57 Application
OD4.0mm 2 Way Articulaton Endoscope Specification

Item	Specification	Item	Specification
Outside Diameter	4.0mm	LED	Round LED
Resolution	400,000 pixels	WaterProof	IP57
DOF	5-100mm	Probe Type	Metal Braided / Flexible
FOV	110°	Working Length	1M/2M/3M
Image Sensor Resolution	CMOS	Scope Length	11mm
Rotate Radius	27mm	Brightness	180 Lumens

Set Accessory
◎5V Power charger / Micro SD Card / USB Cable / Cleaning Cloth / Cleaning Stick /
  User manual
◎AV Out Cable(Optional)
