Product description

For A Better Inspection Scope

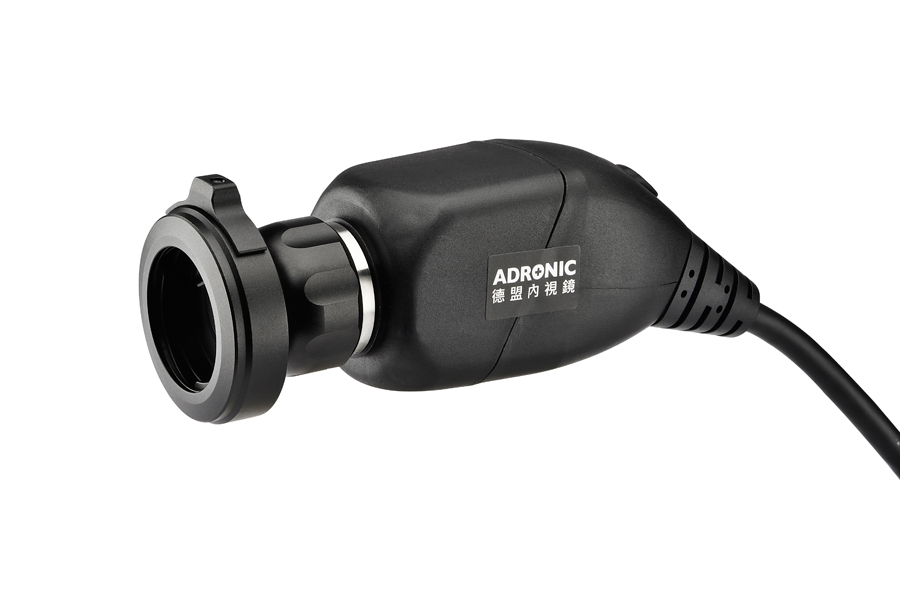

◆ Model:CW-W(Camera)
◆ Model:V70-H200 Camera Control Unit(CCU)
◆ Model:Accessories LSC-A(HDMI Transmission line)X1+power cableX1Model: V70-H200

Full HD Camera / Endoscope Camera/ HDMI output to TV

Certified
◆ IE60601-1(Safety)
◆ IEC 60601-1-2(EMC)
◆ IEC 60601-2-18(endoscopic equipment
◆ ESD 8kV(Contact), 15kV(AIR)
◆ IEC 62304 Software Validation Report

4K/60fps Camera
Full HD2160P/60fps Camera
with Camera Control Unit

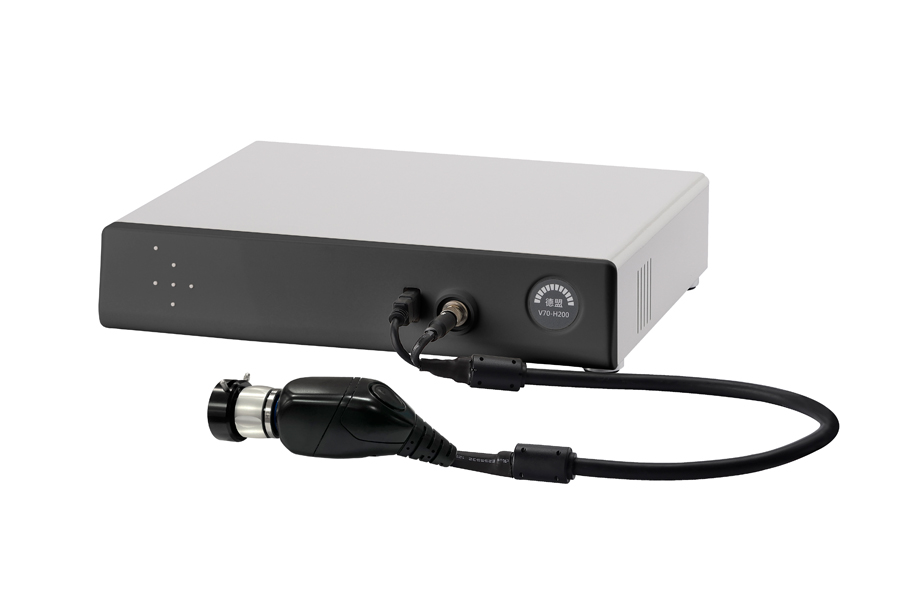

V70-H200 Camera Control Unit(CCU)
◆ 2K Camera Resolution:1920+1080(FHD)
◆ 4K Camera Resolution:3840+2160(QFHD)
◆ ACG:0-27 dB
◆ Lens Mount:C-Mount
◆ RGB Bit:RGB8bit/ 4:4:4
◆ 2K Sensor Size:Sony  1/2.8〞
◆ 4K Sensor Size:Sony  1/2.5〞
◆ User profile:0-7
◆ Sensitivity:1,070Lux
◆ Frame per Second:60 fps
◆ 2K Cell Size:1.26um x 1.26um
◆ 4K Cell Size:2.8um x 2.8um
◆ White balance:Auot and Manual
◆ Output:HDMI

CCU Controller
◆ Power Input:100V~240V
◆ Power Ouput:DC12V
◆ Classification:Class I BF
◆ Fuse:F10AL250V
◆ Size:381×267×84mm
V70-H200 4K 2K
Camera Resolution  3840+2160 (QFHD) 1920x1080 (FHD)
ACG 0-27 dB
Lens Mount C-Mount
RGB Bit RGB8bit/ 4:4:4
Sensor Size Sony  1/2.5〞 Sony 1/2.8"
User profile 0-7
Sensitivity 1,070Lux
Frame per Second 60 fps
Cell Size 1.26um x 1.26um 2.8um x 2.8um
White balance Auot and Manual
Output HDMI

CCU Controller SPECIFICATIONS
Power Input 100V~240V
Power Output DC12V
Classification Class I BF
Fuse F10AL250V
Size 381×267×84mm

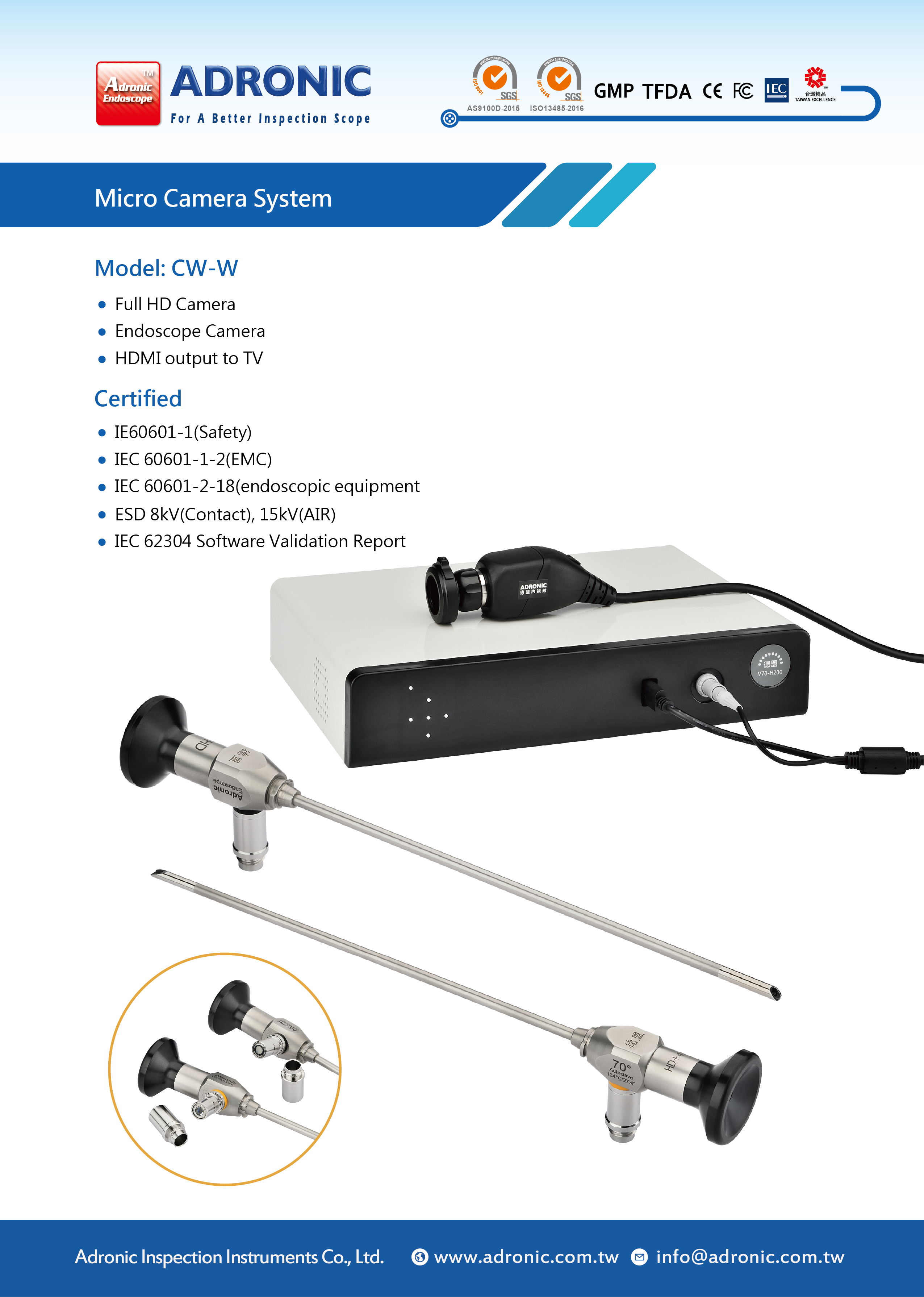

Micro Camera System
V70-H200 Endoscope Camera-2K

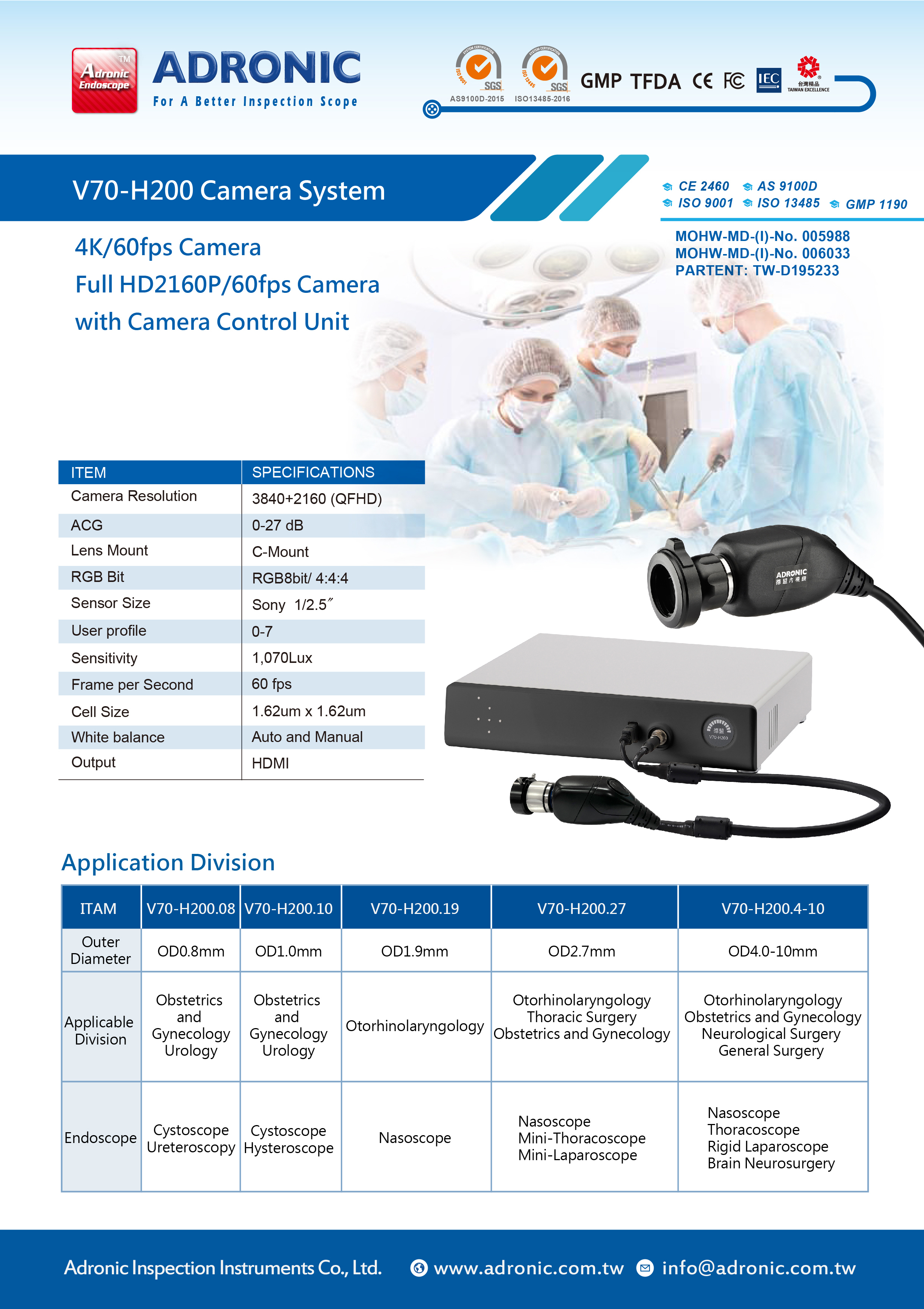

V70-H200 Endoscope Camera-4K
