    • Product description

    For A Better Inspection Scope

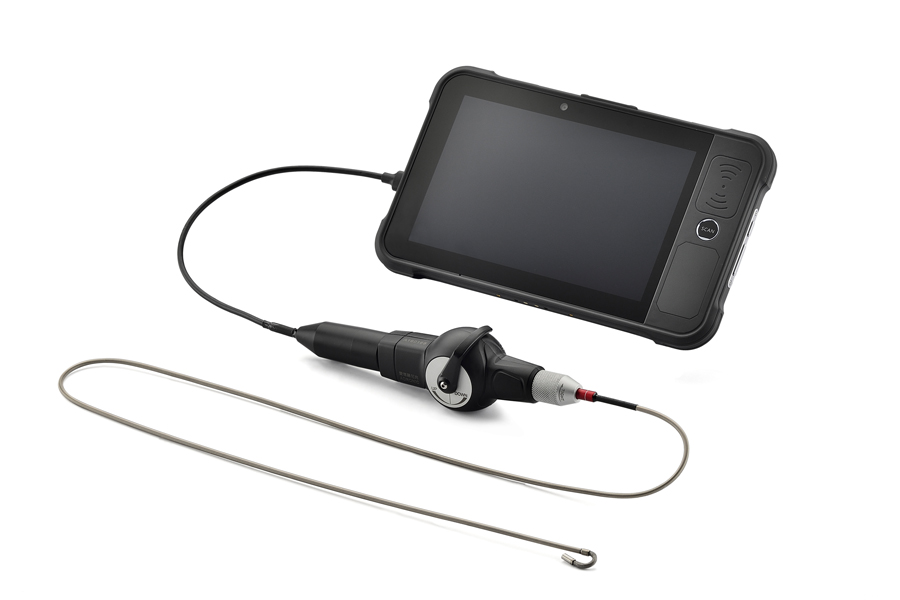

    2 way Articulation Digital Endoscope
    Model: DT280、DT390、DT600、DT800
    ◎  Probe Material: Flexible / Metal-Flexible / Metal-Braided / Semi-rigid

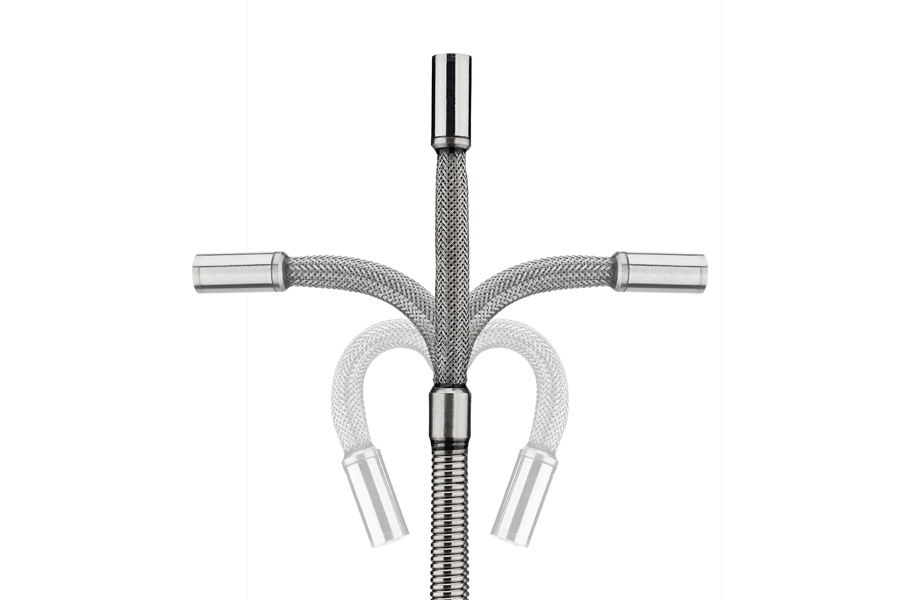

    ◎  Gooseneck bending angel up to 220 degree for each way
    ◎  Outer Diameter : OD2.8/OD3.9/OD6.0/OD8.0mm
    ◎  Accessory portable tablet
    ◎  Working Length : 1-2.5M
    ◎  1.5M drop test
    ◎  Full HD Millions Resolution
    ◎  Host optional


    Image adjustment & optimization


    Item Model OD DOFmm Resolution FOV
    Camerar 2 way Articulation
    Digital Endoscope     		 DT 280 2.8mm 10~50 400,000 90°
    DT 390 3.9mm 10~100 1,000,000 110°
    DT 600 6.0mm 10~100 1,000,000 110°
    DT 800 8.0mm 10~100 1,000,000 110°
    Probe Probe Material Flexible / Metal-Flexible / Metal-Braided / Semi-rigid
    Operation Direction 2 way
    Gooseneck rotation angle 220°
    Working Length 1-2.5M
    Monitor Focus/White Balance Auto
    Monitor 8"(1920*1200 pixels) 283ppi / IPS Capacitive Touch Screen
    AC adapter 110~240V
    Working Temperature -20°~50 °C
    Anti-drop 1.5M drop test
    Design IP65

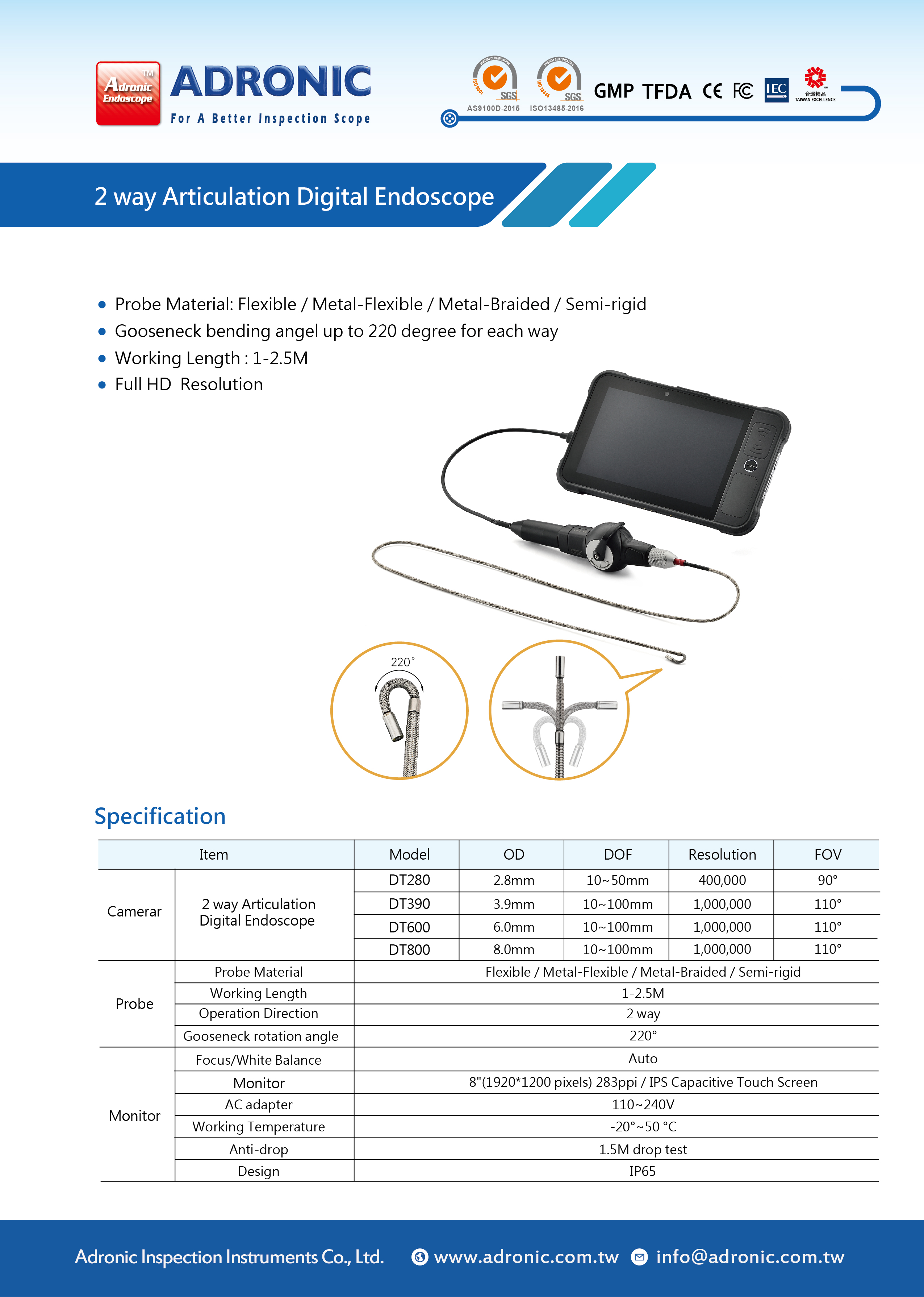

    2 way Articulation Digital Endoscope (DT-Series)
