Product description

For A Better Inspection Scope

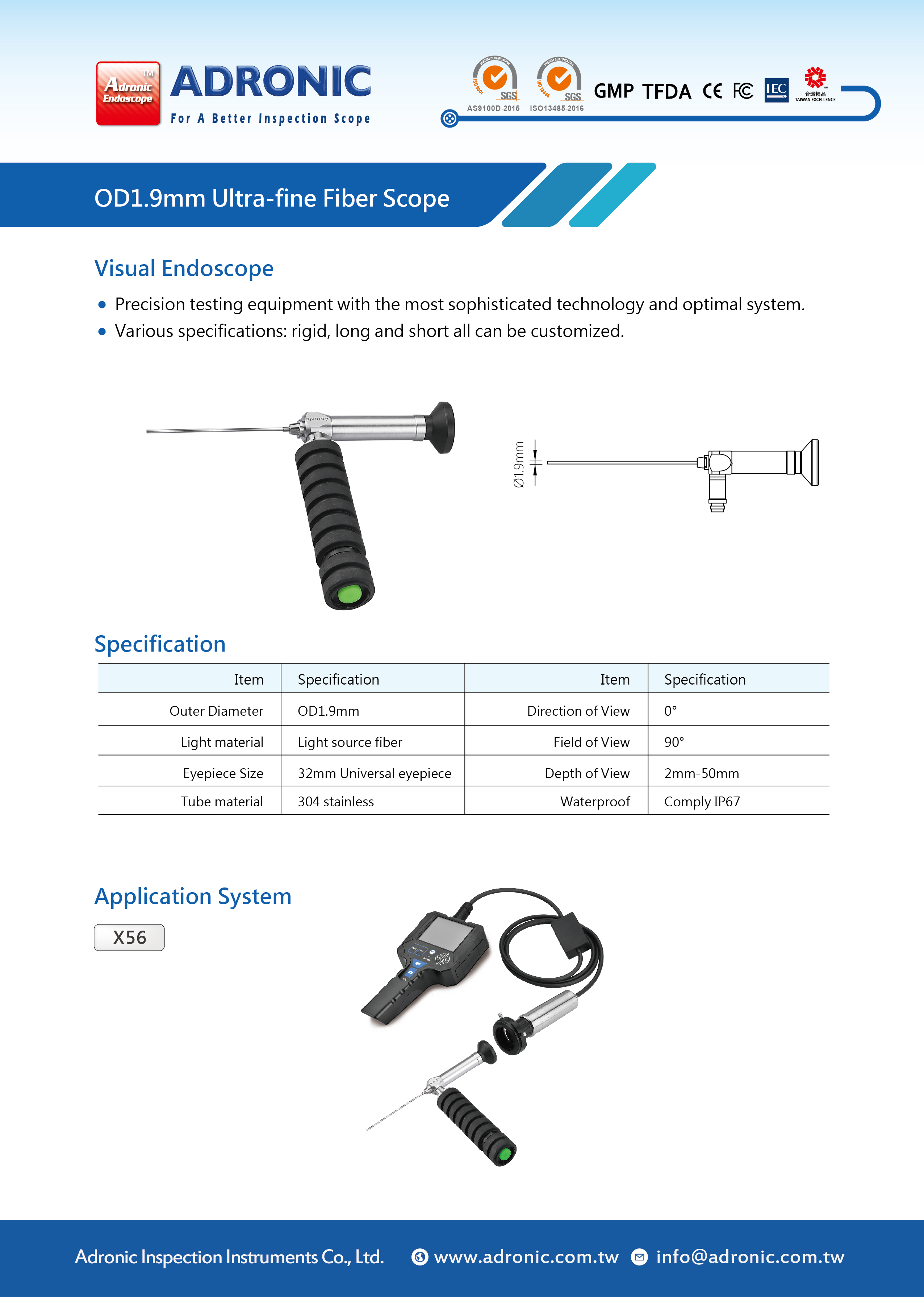

Model:R190

OD1.9mm Ultra-fine Fiber Scope(Visual Endoscope)
◎ Precision testing equipment with the most sophisticated technology and optimal system.
​◎ Various specifications: rigid, long and short all can be customized.



3 Standard Light Post
Adronic endoscope is able to support other light source system, it includes 3 standard light post adapter same as ACMI, WOLF, STORZ and OLYMPUS. The first (ACMI) light post is permanently attached to endoscope and could not be removed. The second (WOLF) light post attaches to the first one. The end (STORZ/OLYMPUS) light post slides over the second one.

Feature
◎ Precision testing equipment with the most sophisticated technology and optimal system.
◎ Wide applications in medical treatment, industry detection, military and police.
◎ Various specifications: soft, rigid, long and short all can be customized.

Application System
X56


Item

Specification

Outer Diameter

OD1.9mm

Light material

Light source fiber

Eyepiece Size

32mm Universal eyepiece

Direction of View

Field of View

90°

Depth of View

2mm-50mm

Tube material

304 stainless

Waterproof

Comply IP67

OD1.9mm Ultra-fine Fiber Scope
