    • Product description

    For A Better Inspection Scope

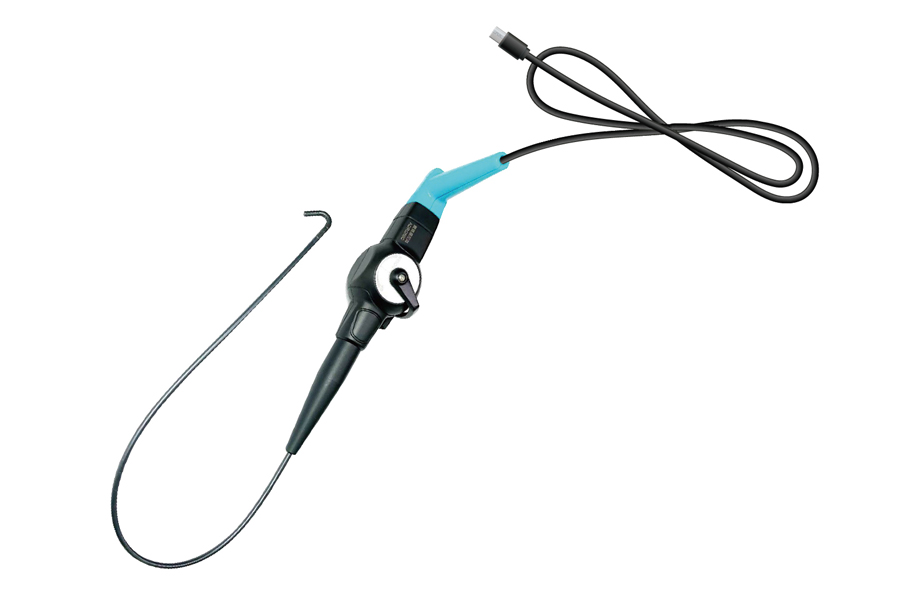

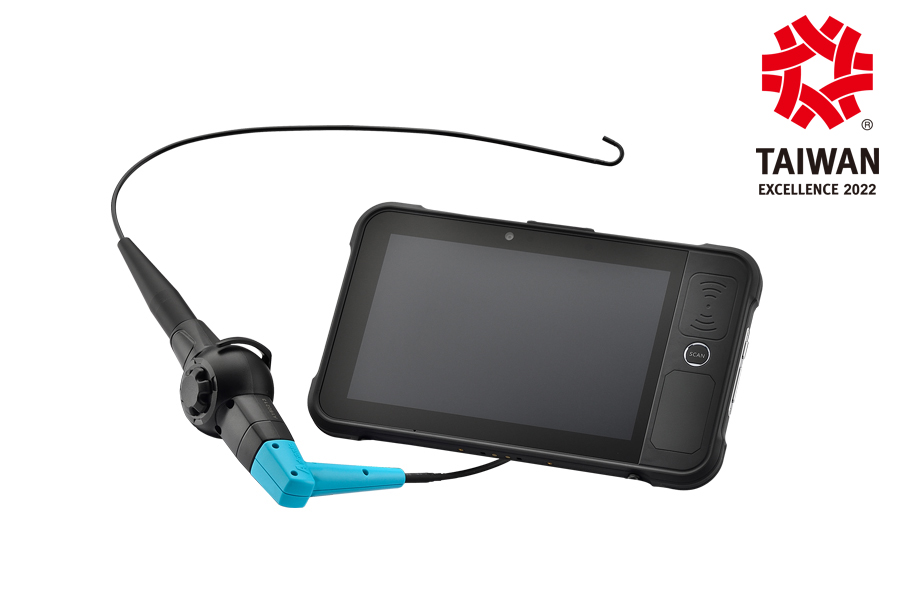

    Semiconductor Endoscope
    S-series : S340、S420
    ◎  Non metal/particle pollution probe detection
    ◎  Fully coated with medical silicone rubber
    ◎  Strong acid resistance up to 49% hydrofluoric acid
    ◎  Strong alkali resistance up to 20% ammonia water

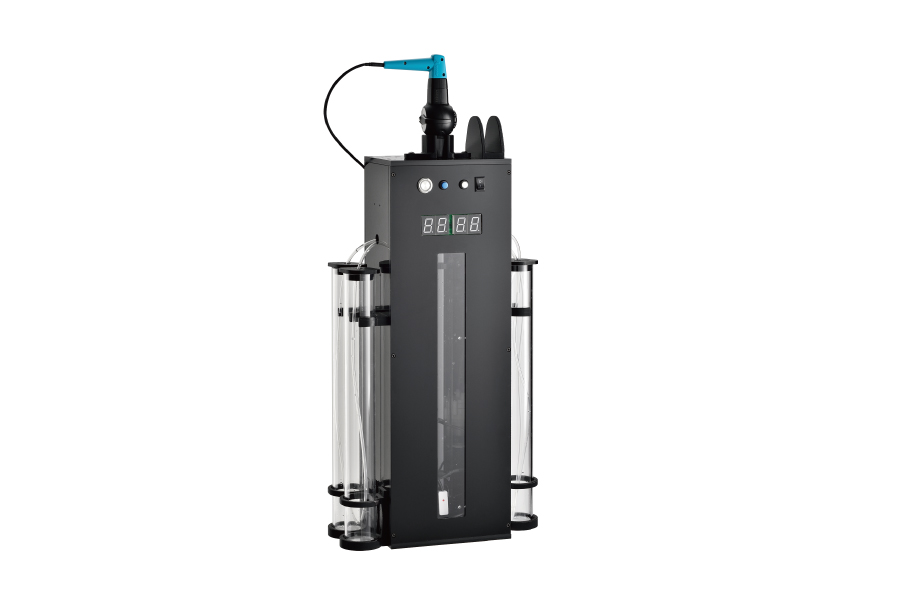

    Automatic Cleaning Machine (For Semiconductor Endoscope)
    ◎  Before and after the test, remove the metal particle contamination on the probe tube
    ◎  Avoid personal contact with unknown liquids
    ◎  One-click automation

    Semiconductor Endoscope S340 S420

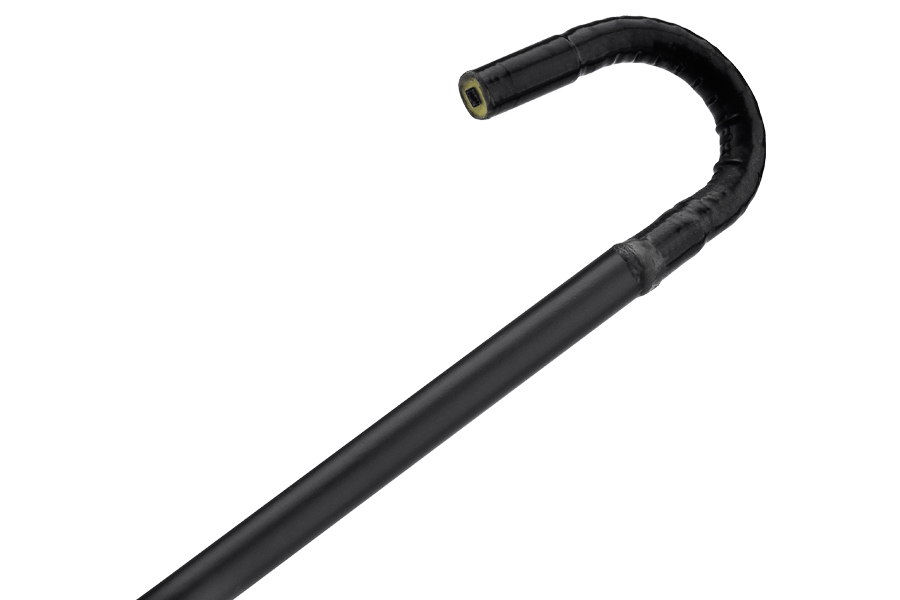

    Probe Outer Diameter 3.4mm 4.2mm
    Working Length 300mm 300mm
    Material Medical silicone rubber Medical silicone rubber
    Articulation Operation Direction 2 way 2 way
    Articulation Angle 180° 180°
    Camera Resolution 400,000 1,000,000
    FOV 90° 110°
    DOF 10~50mm 10~100mm
    Focus/White Balance Auto Auto
    Display Unit Monitor 8"(1920*1200 pixels) 283ppi / IPS Capacitive Touch Screen
    AC adapter 110~240V
    Power Supply Rechargeable lithium battery 8000mAh；4~5 hours operation or more
    Signal Output Type-C、WIFI、Bluetooth、HDMI support
    Working Temperature -20°~50°
    Anti-drop 1.5M drop test
    IP Code IP65

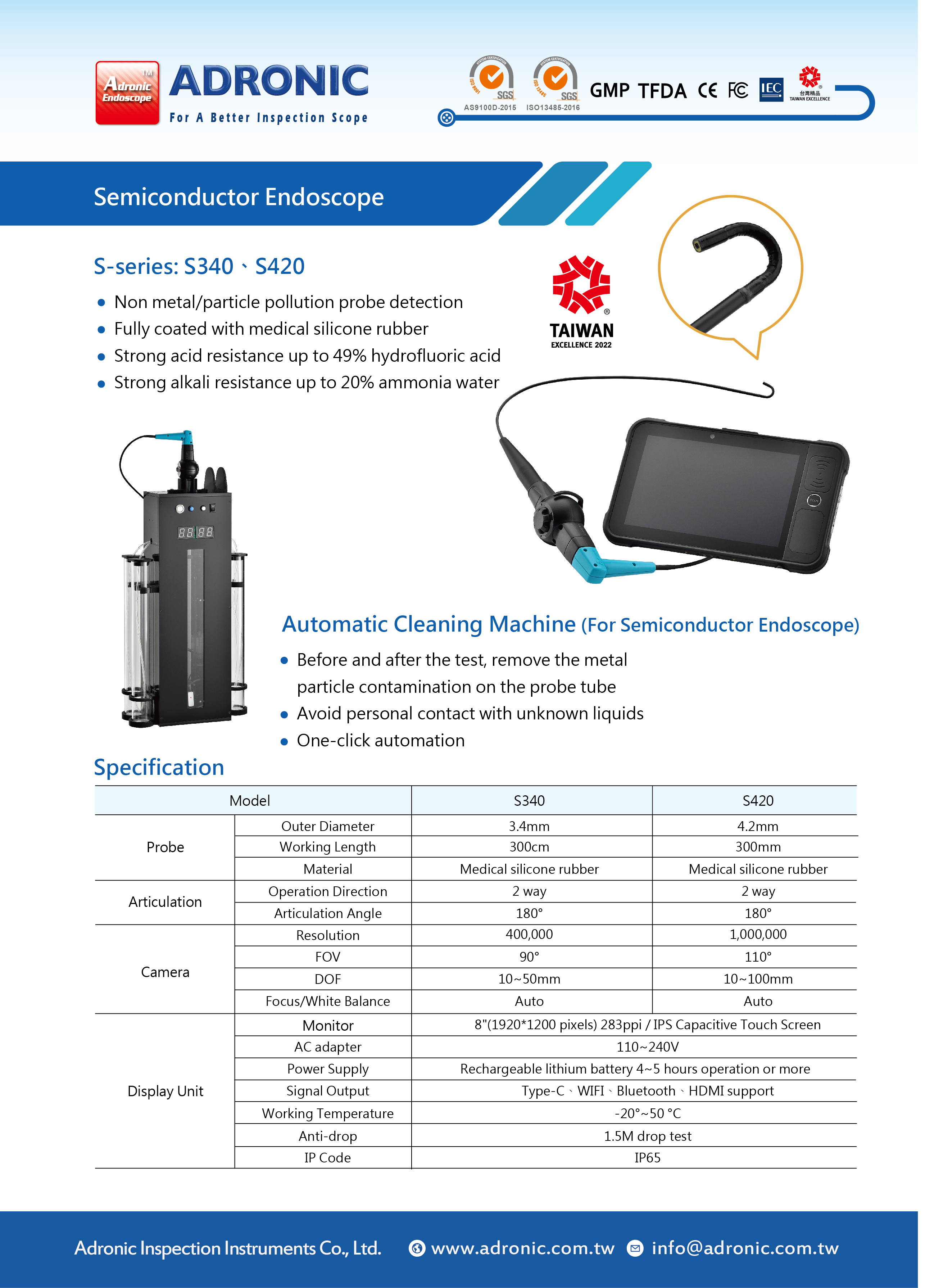

    Semiconductor Endoscope (S-Series)
