    • Product description

    For A Better Inspection Scope

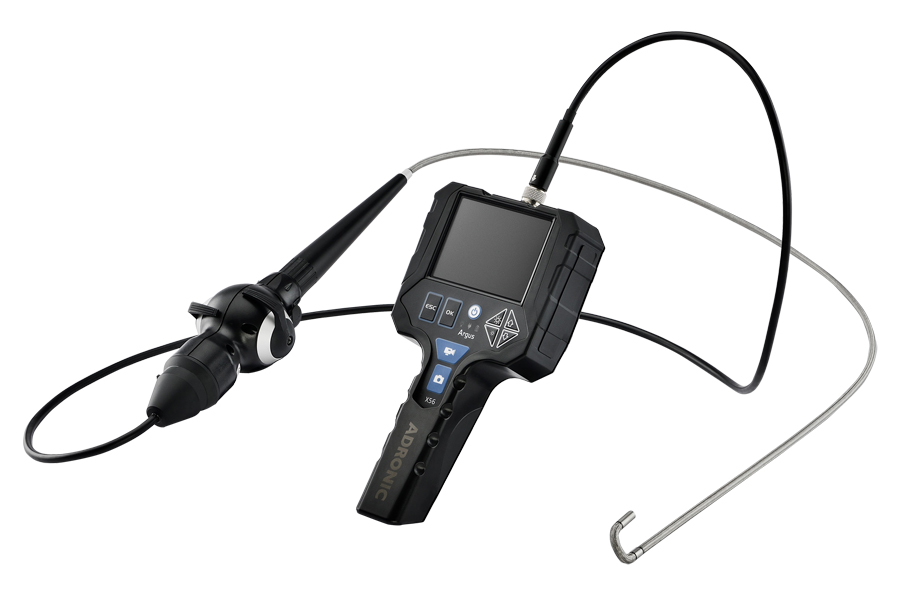

    4 way Articulation Industrial Endoscope

    Model: AF390、AF550、AF600、AF800
    ◎  Probe Material: Flexible / Metal-Flexible / Metal-Braided / Semi-rigid
    ◎  Outer Diameter : OD3.9/OD5.5/OD6.0/OD8.0mm
    ◎  With portable tablet
    ◎  1.5M drop test

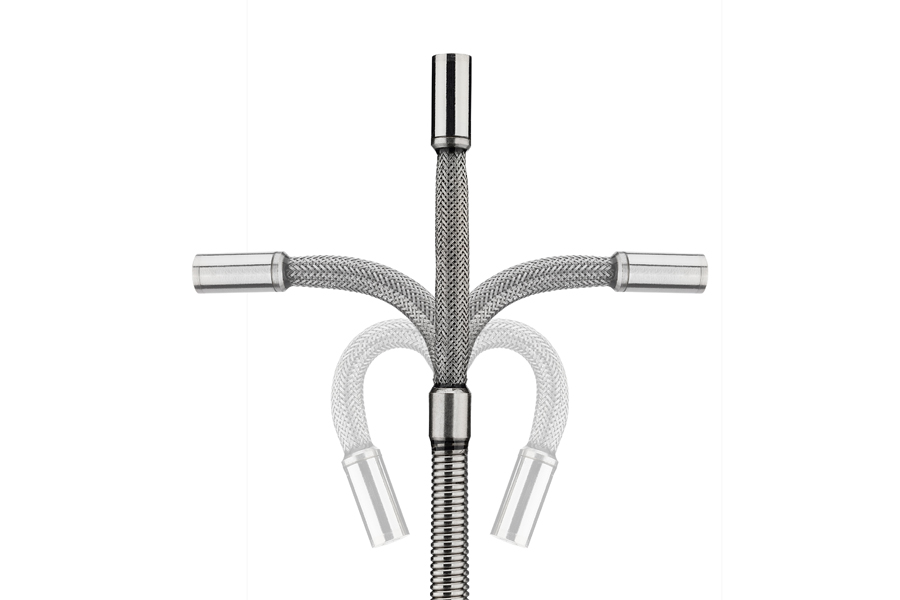

    ◎  360° Full-way Articulation
    ◎  Working Length : 1-2.5M

    Specifications Model OD DOF Resolution FOV
    4 way Articulation
    Endoscope     		 AF390 3.9mm 10~50mm 400,000 90°
    AF550 5.5mm 20~70mm 450,000 67°
    AF600 6.0mm 20~70mm 450,000 67°
    AF800 8.0mm 20~70mm 450,000 90°
    Probe Material Flexible / Metal-Flexible / Metal-Braided / Semi-rigid
    Operation Direction 4 way
    Articulation Angle 360°
    Working Length 1-2.5M
    Focus/White Balance Auto
    Monitor 3.5"(640*480  pixels) Handheld push-button operation screen
    AC adapter 100~240V
    Power Supply Rechargeable lithium battery 5000mAh; Operating time : 4 hours
    Signal Output USB、AV
    Working Temperature -20°~60°
    Anti-drop Anti-drop design
    Design Dustproof and waterproof
    Storage Memory 16GB SD Card
    Image 640 x 480.JPEG
    Video 640 x 480.AVI
    Image Adjustments Mirror, Contrast, Brightness
    Language Chinese, English, Japanese, German, French, Spanish, Russian, etc.

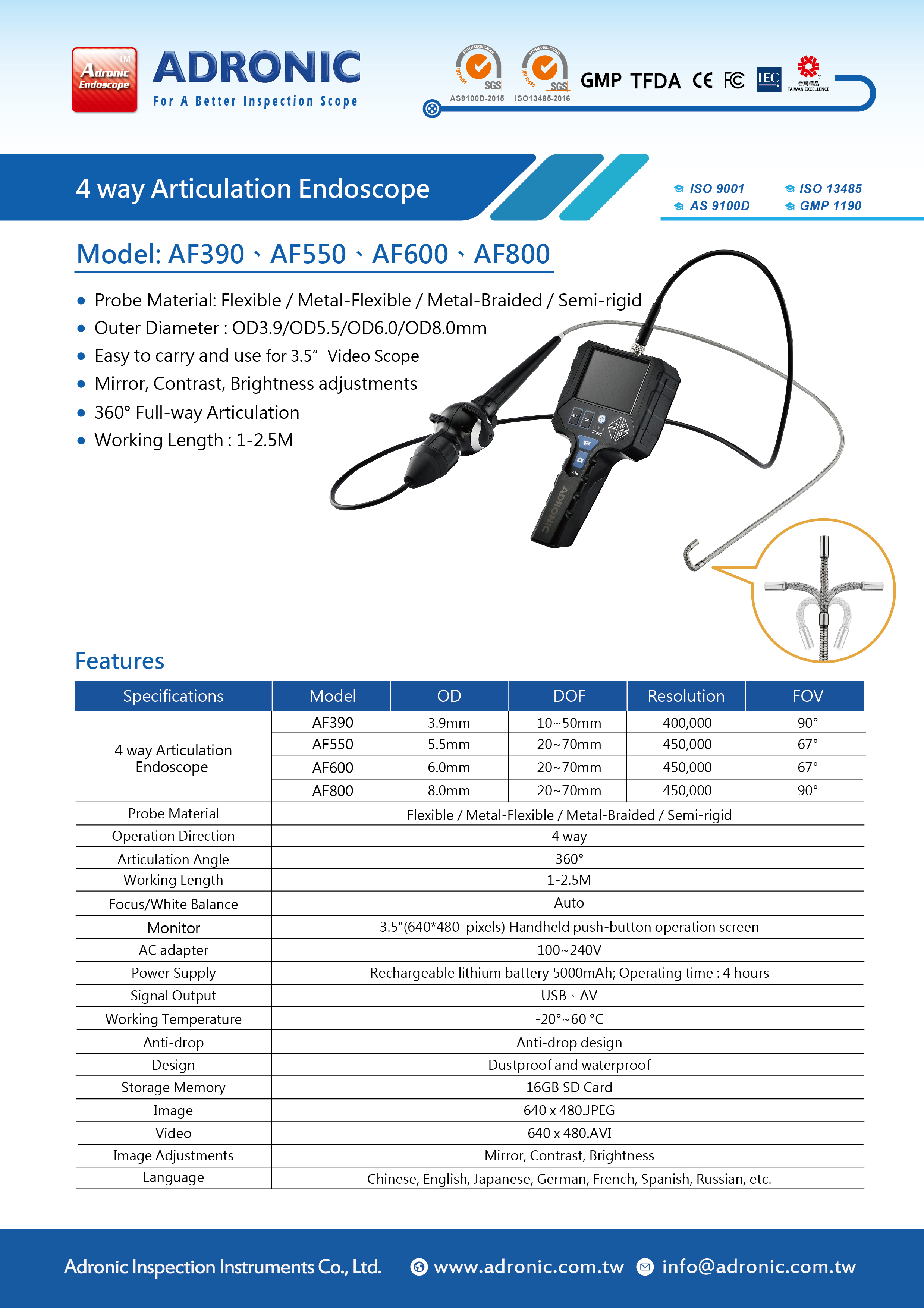

    4-way Articulation Industrial Endoscope (AF-Series)
