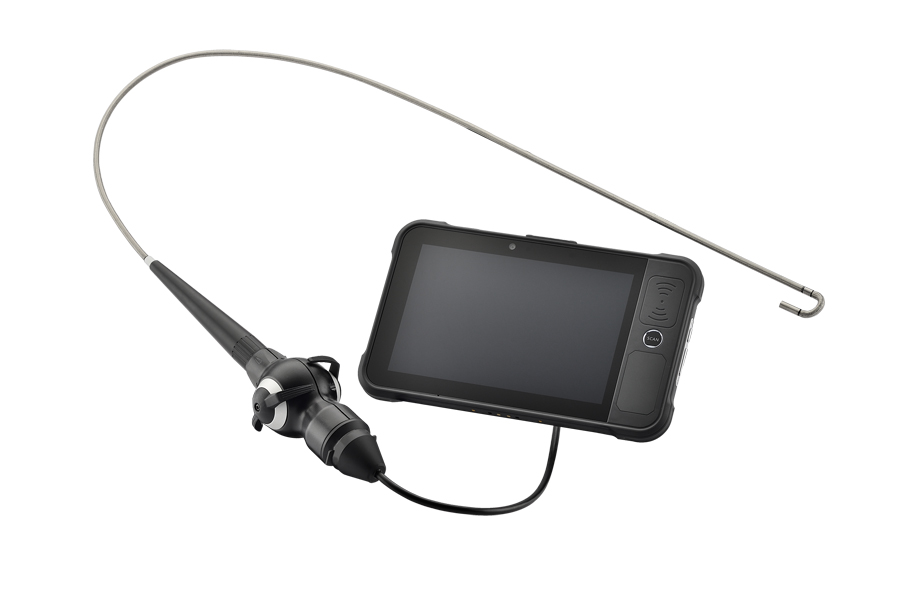

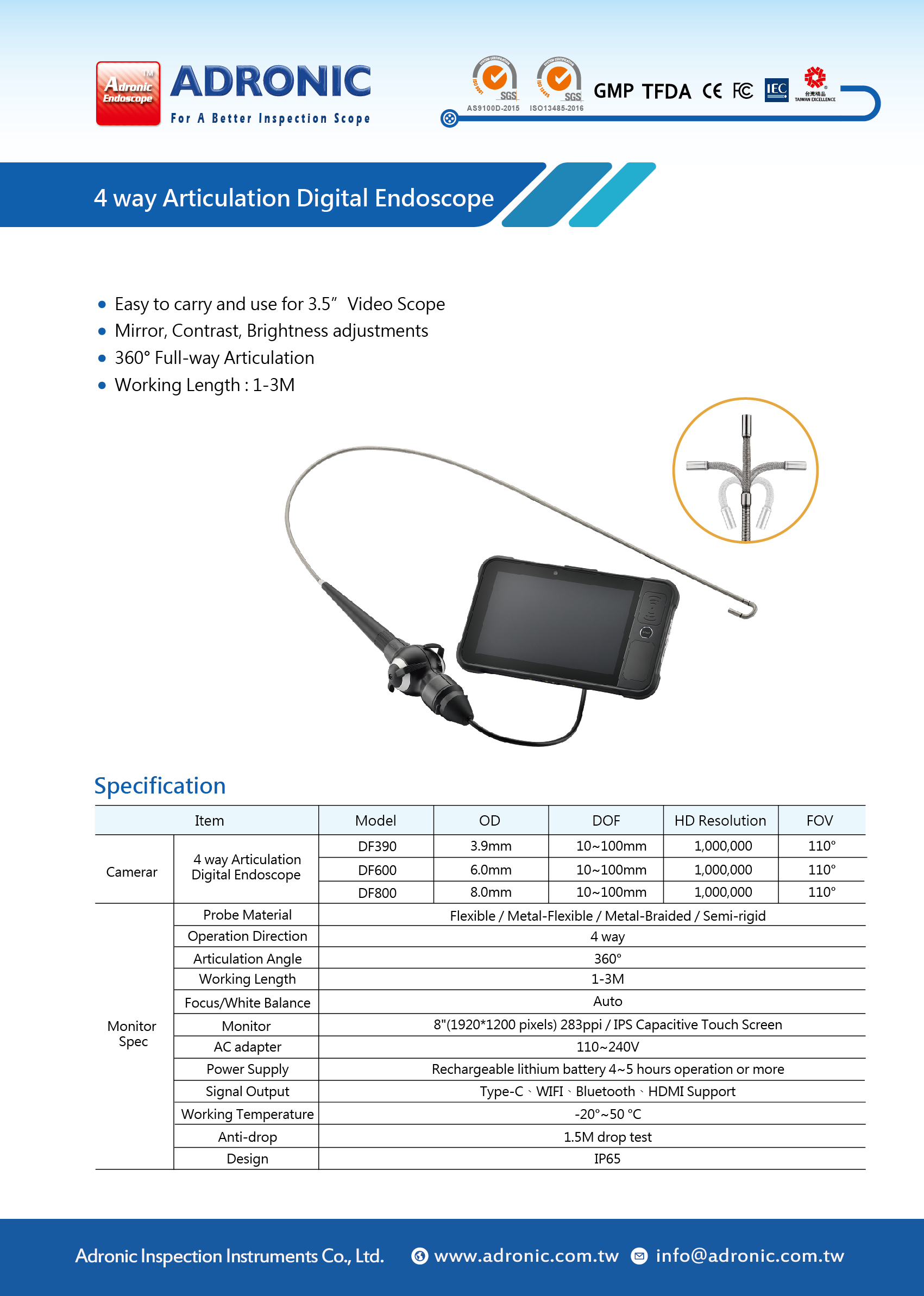

4 way Articulation Digital Endoscope
Model: DF390、DF600、DF800
◎ Easy to carry and use for 3.5”Video Scope

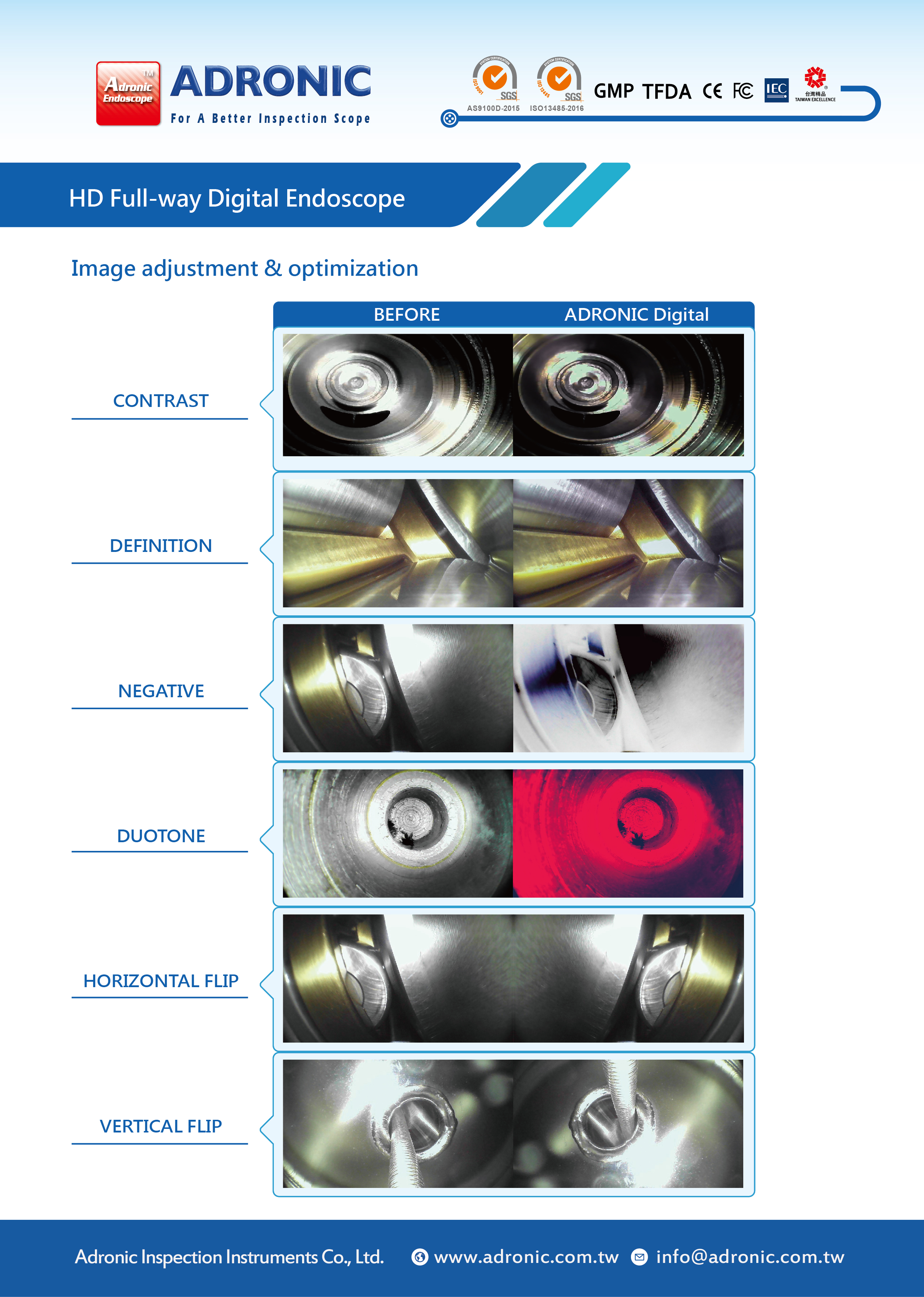

◎ Mirror, Contrast, Brightness adjustments

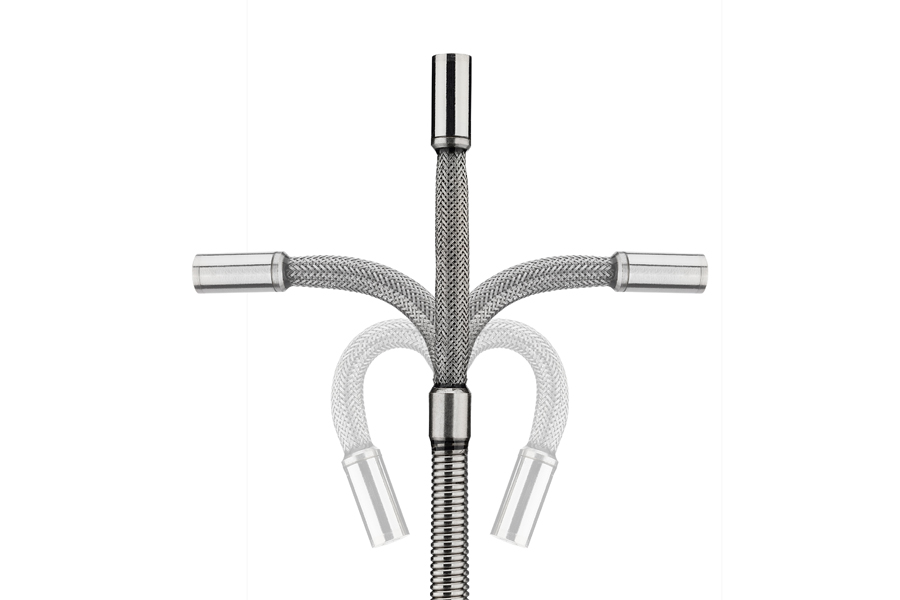

◎ 360° Full-way Articulation
◎ Working Length : 1-3M
| Item | Model | OD | DOF | HD Resolution | FOV | |
|---|---|---|---|---|---|---|
| Camerar | 4 way Articulation Digital Endoscope |
DF390 | 3.9mm | 10~100mm | 1,000,000 | 110° |
| DF600 | 6.0mm | 10~100mm | 1,000,000 | 110° | ||
| DF800 | 8.0mm | 10~100mm | 1,000,000 | 110° | ||
| Monitor Spec |
Probe Material | Flexible / Metal-Flexible / Metal-Braided / Semi-rigid | ||||
| Operation Direction | 4 way | |||||
| Articulation Angle | 360° | |||||
| Working Length | 1-3M | |||||
| Focus/White Balance | Auto | |||||
| Monitor | 8"(1920*1200 pixels) 283ppi / IPS Capacitive Touch Screen | |||||
| AC adapter | 110~240V | |||||
| Power Supply | Rechargeable lithium battery 4~5 hours operation or more | |||||
| Signal Output | -20°~50° | |||||
| Working Temperature | Type-C、WIFI、Bluetooth、HDMI Support | |||||
| Anti-drop | 1.5M drop test | |||||
| Design | IP65 | |||||
